contur::IPageReplacementPolicy Class Reference

Abstract interface for page replacement algorithms. More...

#include <i_page_replacement.h>

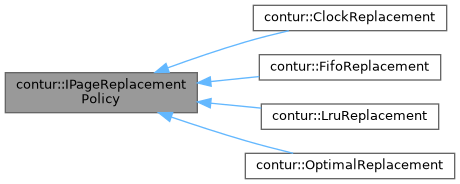

Inheritance diagram for contur::IPageReplacementPolicy:

Public Member Functions
virtual	~IPageReplacementPolicy ()=default
virtual std::string_view	name () const noexcept=0
	Returns the name of the algorithm (e.g., "FIFO", "LRU").
virtual FrameId	selectVictim (const PageTable &pageTable)=0
	Selects a victim frame to evict.
virtual void	onAccess (FrameId frame)=0
	Notifies the policy that a frame was accessed (read or write).
virtual void	onLoad (FrameId frame)=0
	Notifies the policy that a new page was loaded into a frame.
virtual void	reset ()=0
	Resets the policy's internal state.

Detailed Description

Abstract interface for page replacement algorithms.

The MMU consults this policy to decide which physical frame to evict when a page fault occurs and no free frames are available. Implementations: FIFO, LRU, Clock, Optimal.

Definition at line 19 of file i_page_replacement.h.

Constructor & Destructor Documentation

~IPageReplacementPolicy()

virtual contur::IPageReplacementPolicy::~IPageReplacementPolicy ( )

virtualdefault

Member Function Documentation

name()

virtual std::string_view contur::IPageReplacementPolicy::name ( ) const

nodiscardpure virtualnoexcept

Returns the name of the algorithm (e.g., "FIFO", "LRU").

Implemented in contur::ClockReplacement, contur::FifoReplacement, contur::LruReplacement, and contur::OptimalReplacement.

onAccess()

virtual void contur::IPageReplacementPolicy::onAccess ( FrameId frame )

pure virtual

Notifies the policy that a frame was accessed (read or write).

Implemented in contur::ClockReplacement, contur::FifoReplacement, contur::LruReplacement, and contur::OptimalReplacement.

onLoad()

virtual void contur::IPageReplacementPolicy::onLoad ( FrameId frame )

pure virtual

Notifies the policy that a new page was loaded into a frame.

Implemented in contur::ClockReplacement, contur::FifoReplacement, contur::LruReplacement, and contur::OptimalReplacement.

reset()

virtual void contur::IPageReplacementPolicy::reset ( )

pure virtual

Resets the policy's internal state.

Implemented in contur::ClockReplacement, contur::FifoReplacement, contur::LruReplacement, and contur::OptimalReplacement.

selectVictim()

virtual FrameId contur::IPageReplacementPolicy::selectVictim ( const PageTable & pageTable )

nodiscardpure virtual

Selects a victim frame to evict.

Parameters

pageTable

The current page table state.

Returns

The FrameId of the frame to evict.

Implemented in contur::ClockReplacement, contur::FifoReplacement, contur::LruReplacement, and contur::OptimalReplacement.

---

The documentation for this class was generated from the following file:

• include/contur/memory/i_page_replacement.h
